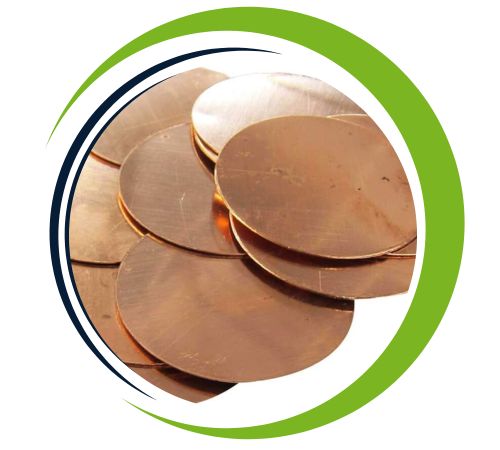

Aluminium Bronze Circle

Layla Sheets and Plates is a reputable manufacturer and supplier located in Cairo, Egypt, specializing in high-quality **Aluminium Bronze Circles** for a variety of uses, including industrial, marine, and decorative applications. With state-of-the-art production facilities and rigorous quality control measures, the company guarantees precision, a superb surface finish, and consistent thickness in every product. Layla Sheets and Plates caters to sectors like shipbuilding, engineering, automotive, and architecture. Their Aluminium Bronze Circles are highly regarded for their exceptional strength, resistance to corrosion, and durability, making them perfect for bearings, bushings, gears, and other applications that require high load-bearing capacity or decorative appeal.

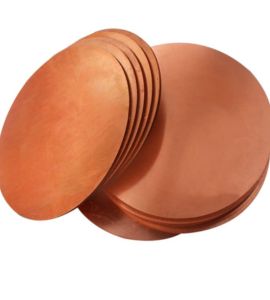

Aluminium Bronze Circle

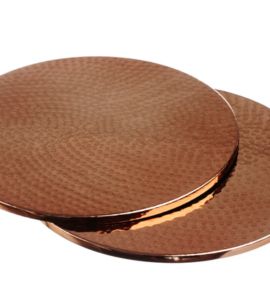

Circle Aluminium Bronze

Aluminium Bronze Industrial Circles

Aluminium Bronze Circle Dealer in Cairo, Circle Aluminium Bronze Supplier in Cairo, Aluminium Bronze CR Circles Manufacturer in Alexandria, Aluminium Bronze HR Circles Stockist, Aluminium Bronze CR Circles Price List in Port Said, Aluminium Bronze Hot Rolled Circles Supplier in Egypt, Aluminium Bronze Cold Rolled Circle in Cairo, Aluminium Bronze Hot Rolled Circle Supplier in Egypt

These Aluminium Bronze Circles are primarily made of copper (Cu), with aluminium (Al) as the key alloying element, typically comprising 7–11%, along with trace amounts of iron, nickel, and manganese. They boast impressive tensile strength ranging from 400–700 MPa and excellent hardness, along with good elongation properties that facilitate machining and fabrication. These circles offer outstanding corrosion resistance, particularly in seawater and acidic conditions, as well as remarkable resistance to wear, galling, and fatigue. Their high thermal and electrical conductivity, combined with their attractive golden hue, makes them suitable for both practical and decorative applications.

Aluminium Bronze Circle Specification

Standard	AMS 4640 , UNS C63000, UNS C63200, UNS C95800, UZ19AL6, UNS C95510, AMS 4880, C67000, C67500, or C67600
Thickness	1 mm To 100 mm
Diameter	Upto 2000 mm
Circle Diameter	3″ DIA up to 38″ DIA 1500 lbs max
Rings Thickness	1 Mm To 100 Mm
Ring	3″ OD up to 48″ OD Up to 900 lbs max
Types	Hot Rolled Circles, Cold Rolled Circle, Proof Machined Circles

Chemical Properties of Aluminium Bronze Circle

Element	Content (%)
Copper, Cu	82.7
Aluminium, Al	12.5-13.5
Iron, Fe	3.5-5.0
Manganese, Mn	≤2.0
Other	≤0.5

Mechanical Properties of Aluminium Bronze Circle

Properties	Metric	Imperial
Hardness, Rockwell C	27	27
Tensile strength (M30 and O61 tempers)	690 MPa	100000 psi
Yield strength (M30 and O61 tempers)	380 MPa	55100 psi
Elongation at break (in 50 mm, 1% reduction in area)	1.00%	1.00%
Elastic modulus	117 GPa	17000 ksi
Compressive yield strength (at permanent set of 0.1%)	450 MPa	65300 psi
Compressive yield strength (at permanent set of 1%)	880 MPa	128000 psi
Poisson’s ratio	0.34	0.34
Charpy impact (@ 18.0 – 100°C/ -0.400 – 212°F, keyhole)	3.00 J	2.21 ft-lb
Izod impact (@ 18.0 – 100°C/ -0.400 – 212°F)	3.00 J	2.21 ft-lb
Fatigue strength (@# of cycles 1.00e+8, M30 temper)	460 MPa	66700 psi
Machinability (UNS C36000 (free-cutting brass) = 100)	20	20
Shear modulus	42.3 GPa	6140 ksi

Aluminium Bronze Circle Distributor in Port Said, Aluminium Bronze CR Circle Supplier in Egypt ,Aluminium Bronze Circle Supplier in Alexandria, Stockist of Aluminium Bronze Circle in Cairo, Aluminium Bronze Circle Supplier in Egypt, Aluminium Bronze Circle Price List in Port Said, Aluminium Bronze Supplier in Cairo,Aluminium Bronze Circle Exporter in Cairo, Aluminium Bronze Circle Exporter in Egypt,316L Aluminium Bronze Cold Rolled Circle Exporter in Alexandria

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Aluminium Bronze Circle Manufacturer and Exporter in Alexandria, Egypt

Layla Sheets and Plates based in Alexandria, Egypt, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Aluminium Bronze Circles Distributor in Egypt, Aluminium Bronze Forged Circle Exporter in Alexandria, Aluminium Bronze CR Circles Exporter in Cairo, Aluminium Bronze Large Diameter Circle Manufacturer in Alexandria, Aluminium Bronze Plazma Cut Circle Price List in Egypt, Aluminium Bronze Big Size Circle Distributor in Alexandria, Aluminium Bronze Circle Cut Machined Circle Exporter in Port Said

Aluminium Bronze Circle offer many advantages, such as excellent corrosion resistance, especially in marine and industrial applications. They have great strength and durability, making them ideal for applications that require corrosion resistance. Aluminum copper is also known for its excellent thermal and electrical conductivity, as well as its resistance to oxidation and cavitation corrosion. These properties make them suitable for use in applications such as marine components, industrial equipment, and electrical communications. Moreover, the material’s resistance to fatigue and stress cracking enhances its longevity and reliability under extreme conditions.

Types of Aluminium Bronze Circle

Aluminium Bronze Circles in Cairo, Aluminium Bronze HR Circle Stockist in Alexandria, Aluminium Bronze Circles Supplier in Alexandria, Aluminium Bronze Industrial Circles Exporter in Cairo, Aluminium Bronze HR Circles Price List in Egypt, 316L Stainless Steel Cut Machined Circle in Alexandria, Aluminium Bronze CR Circles Supplier in Cairo, Aluminium Bronze Circles Distributor in Egypt, Aluminium Bronze Circles Supplier in Egypt

Are Custom Sizes Available for Aluminium Bronze Circle?

Yes, we offer custom sizes for Aluminium Bronze Circle to meet specific project needs. Our team at Layla Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Aluminium Bronze Circle

Aluminium Bronze Circles find extensive use in industries that demand strength, corrosion resistance, and durability. In marine and offshore sectors, they are utilized for propeller shafts, pump components, and valves due to their ability to withstand seawater corrosion. In mechanical engineering, they serve as bearings, gears, and bushings that face high stress and friction. Their appealing golden finish is also favored in architectural and decorative applications for plaques, fittings, and ornamental designs. The blend of strength, corrosion resistance, and visual charm makes Aluminium Bronze Circles a versatile and dependable material across various industries.
