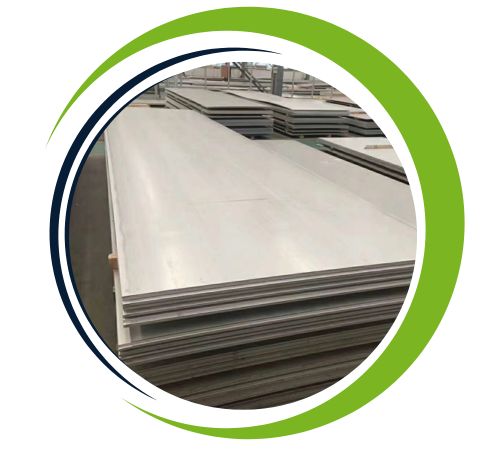

SMO 254 Sheet and Plates

Layla Sheets and Plates, a top-notch manufacturer and supplier located in Cairo, Egypt, is all about delivering high-quality SMO 254 Sheets and Plates. These robust austenitic stainless steel plates are crafted to handle tough environments, especially those with high chloride levels and acidic conditions. Renowned for their outstanding corrosion resistance, strength, and durability, the SMO 254 Sheets and Plates from Layla meet international quality standards and serve a variety of industries, including marine, chemical processing, and desalination. The company prides itself on precision-engineered products that promise reliability, longevity, and top-notch performance in even the most demanding applications.

SMO 254 Sheets Dealer in Cairo, SMO 254 Plates Supplier in Cairo, UNS S31254 Sheets in Alexandria, Plates Size Chart, UNS S31254 Sheet Price in Port Said, DIN 1.4547 Plates Supplier in Egypt, DIN 1.4547 Sheet Stockist in Cairo, SMO 254 Sheets and Plates Exporter in Egypt, SMO 254 Sheet Stockist in Alexandria, UNS S31254 Plates Supplier in Cairo

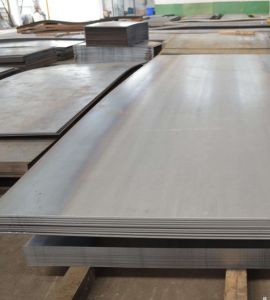

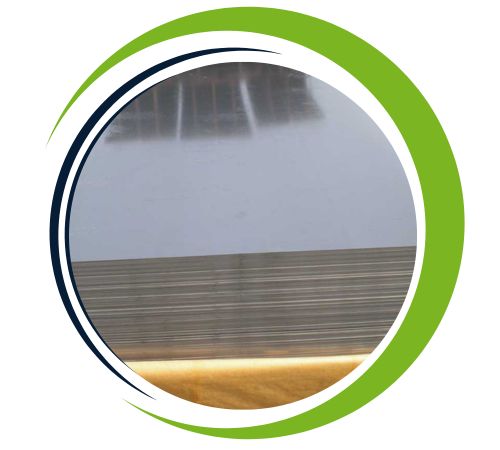

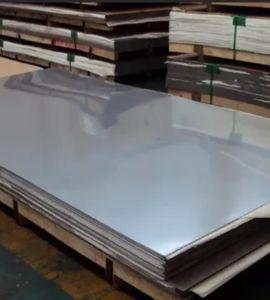

SMO 254 Cold Rolled Plates

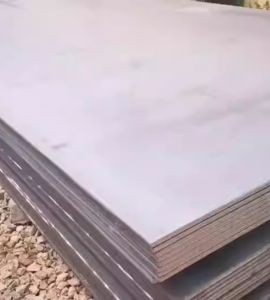

SMO 254 Hot Rolled Plates

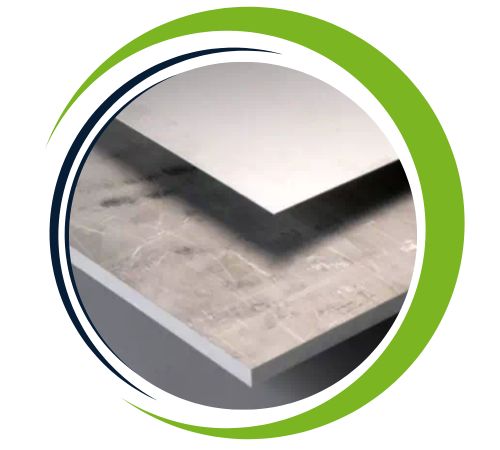

SMO 254 Clad Sheets & Plate

The composition of SMO 254 Sheets and Plates includes chromium (20%), nickel (18%), molybdenum (6%), and nitrogen (0.2%), which together provide remarkable resistance to pitting and crevice corrosion. They boast impressive mechanical properties, featuring a minimum tensile strength of 650 MPa and a yield strength of 300 MPa. This material is not only highly ductile and tough but also easy to weld, maintaining its strength and resistance in harsh marine or chemical settings.

SMO 254 Sheet and Plates Specification

Specifications	ASTM A240 / ASME SA240
Thickness	4mm-100mm
Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface	2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hairline, sand blast, Brush, etching, etc
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)

SMO 254 Sheet and Plates Chemical Composition

Grade	Ni	C	Mo	Mn	Si	Fe	Cu	S	P	Cr
SMO 254	17.5 – 18.5	0.02 max	6 – 6.5	1 max	0.8 max	–	0.5 – 1	0.01 max	0.03 max	19.5 – 20.5

SMO 254 Sheet and Plates Mechanical Properties

0.2% Proof Stress (N/mm2 ) [ksi] minimum	300 [43.5]
Tensile Strength (N/mm2) [ksi] minimum	650
Elongation (%) minimum	35
Hardness (HBN)	270 max
Reduction of Cross Section Area (%)	50

SMO 254 Sheets Price in Port Said, SMO 254 Hot Rolled Weight Chart, UNS S31254 Cold Rolled Supplier in Egypt, Stockist of SS UNS S31254 Cold Rolled Sheets in Cairo, DIN 1.4547 Perforated Sheet Supplier in Egypt, DIN 1.4547 Perforated Plates Price List in Alexandria, SMO 254 Perforated Plates Supplier in Cairo,SMO 254 Chequered Plates Exporter in Cairo, UNS S31254 Polished Plates Exporter in Egypt, UNS S31254 Perforated Plates Exporter in Alexandria, DIN 1.4547 Sheet and Plate in Port Said

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest SMO 254 Sheets and Plates Manufacturer and Exporter in Alexandria, Egypt

Layla Sheets and Plates based in Alexandria, Egypt, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

SMO 254 Chequered Sheets Distributor in Egypt, UNS S31254 Perforated Plates Supplier in Alexandria, DIN 1.4547 Perforated Sheet Weight Chart, SMO 254 Plate Exporter in Cairo, SMO 254 Polished Sheets Manufacturer in Cairo, UNS S31254 Shim Sheet and Plate Price List in Egypt, UNS S31254 Chequered Plates Sizes in mm, SS DIN 1.4547 Hot Rolled Plate Distributor in Alexandria, SMO 254 Sheets and Plates Port Said

DIN 1.4547 Sheets and Plates offer exceptional corrosion resistance, particularly against pitting, crevice corrosion, and stress corrosion cracking in chloride environments. With high molybdenum and nitrogen content, it performs excellently in harsh chemical and marine conditions. The alloy provides superior strength, durability, and excellent weldability, making it ideal for high-stress applications. Its resistance to high temperatures and aggressive environments ensures long-term performance without degradation. SMO 254 is also highly resistant to oxidation, ensuring it maintains its integrity even in extreme conditions, making it a preferred choice for industries such as chemical processing, petrochemical, and marine.

Physical Properties of SMO 254 Sheets and Plates

Density (Kg.m-1)	8000
Magnetic Permeability	<1.05
Young’s Modulus (N/mm2)	200 x 103
Specific Heat, 20°C (J.Kg-1.°K-1)	500
Specific Electrical Resistance, 20°C (µO.m)	0.85
Thermal conductivity, 20°C	13.5

Types of SMO 254 Sheet and Plates

SMO 254 Plates Manufacturer in Cairo, SMO 254 Plates & Sheets Alexandria, DIN 1.4547 Mirror Finish Plates Supplier in Alexandria, DIN 1.4547 Polished Plates Exporter in Cairo, UNS S31254 Chequered Plates Price List in Egypt, UNS S31254 Cold Rolled Plate Distributor in Alexandria, SMO 254 Mirror Finished Plates and Sheets Supplier in Cairo, DIN 1.4547 Sheet and Plate Distributor in Egypt, UNS S31254 Perforated Plate Sizes in mm

Are Custom Sizes Available for SMO 254 Sheet and Plates?

Yes, we offer custom sizes for SMO 254 Sheet and Plates to meet specific project needs. Our team at Layla Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

SMO 254 Sheet and Plates Equivalent Grade

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	SIS	GOST
SMO 254	S31254	1.4547	Z1 CNDU 20.18.06Az	X1CrNiMoCuN20-18-7	–	2378	–

Dimensions of SMO 254 Sheets and Plates

Surface finish	Thickness (mm)	Width (mm)
2B – Cold rolled, heat treated, pickled, skin passed	0.25–8.0	max. 2032
2D – Cold rolled, heat treated, pickled	0.4–6.35	max. 1524
2E – Cold rolled, heat treated, mechanically descaled	0.4–8.0	max. 2032
2R – Cold rolled, bright annealed	0.25–3.5	max. 1524
2H – Work hardened	0.4–6.35	max. 1524
Polished, brushed	0.5–4.0	max. 1524

Application Industry of SMO 254 Sheet and Plates

You’ll find SMO 254 Sheets and Plates widely utilized in industries that demand excellent corrosion resistance and mechanical performance, such as chemical processing, pulp and paper, food processing, offshore operations, and desalination plants. They’re perfect for applications like heat exchangers, evaporators, pressure vessels, and piping systems that come into contact with seawater or acidic substances. Their exceptional ability to resist chloride stress corrosion cracking and oxidation makes them ideal for both high-temperature and high-pressure situations, ensuring a long service life and solid structural integrity.
