Layla Sheets and Plates is a well-respected manufacturer and supplier located in Cairo, Egypt, specializing in high-quality **Stainless Steel 409 Sheets and Plates** for a range of industrial and structural uses. The company has built a solid reputation for its dedication to quality, precision, and ensuring customer satisfaction. Their Stainless Steel 409 products are crafted to provide outstanding corrosion resistance, durability, and heat tolerance, even in high-temperature settings. Layla Sheets and Plates serves various industries, including automotive, construction, and power generation, guaranteeing reliable performance and compliance with international manufacturing standards for every sheet and plate they deliver.
**Stainless Steel 409 Sheets and Plates** are ferritic stainless steels that contain **10.5–11.75% chromium**, along with trace amounts of **carbon, manganese, and titanium** to enhance stability and corrosion resistance. This material boasts a **tensile strength of 380–450 MPa**, a **yield strength of around 170 MPa**, and an **elongation of about 20%**. It excels in oxidation resistance and thermal conductivity while also being easy to weld and form, making it a cost-effective choice for environments with moderate corrosion and heat exposure.
| Standards | ASTM A240 / ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness | 0.01~200mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

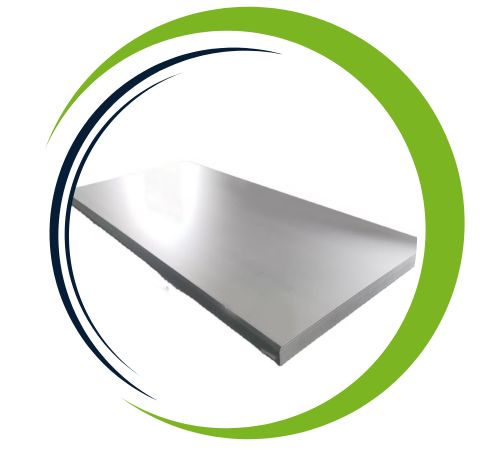

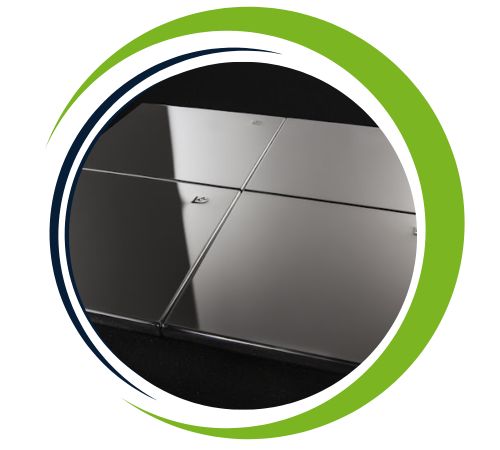

| Surface Finish | the surface and finish of stainless steel 409 sheet: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |

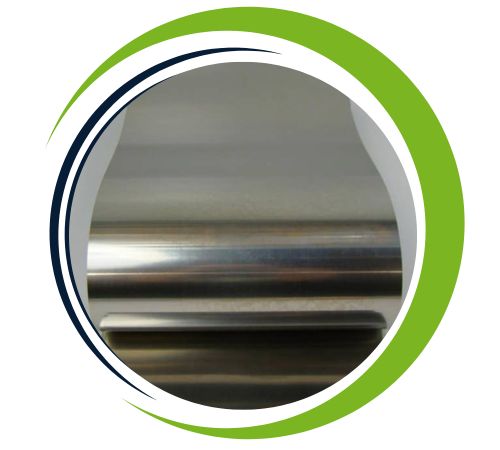

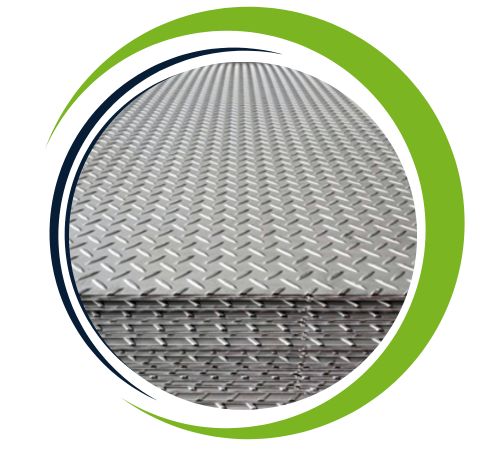

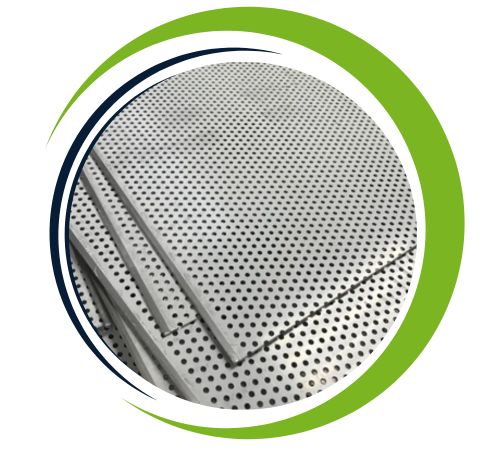

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mg | Ph | Si | Sl | Cr | Ti | Ni |
| 409 min 409 max | – 0.08 | – 1 | – 0.045 | – 1 | – 0.045 | 10.5 11.75 | 6xC – | – 0.5 |
| Density (lb / cu. in.) | Specific Gravity | Specific Heat (Btu/lb/Deg F – [32-212 Deg F]) | Modulus of Elasticity Tension |
| 0.278 | 7.86 | 0.11 | 29 |
| Grade | WERKSTOFF NR. | AISI | UNS | AFNOR | BS | GOST | JIS |
| SS 409 | 1.4512 | 409 | S40900 | Z3CT12 | 409 S 19 | SUH 409 | – |
|
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion (μm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Electrical Resistivity (nΩ.m) |
|||
|
0-100°C |
0-315°C |
0-538°C |
at 100°C |
at 500°C |
|||||
|
409 |
7800 |
200 |
11.0 |
11.7 |
12.4 |
25.8 |
27.5 |
460 |
600 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 409 sheets and plates have many advantages, including excellent corrosion and oxidation resistance, and the high chromium content provides durability against scratches and scratches, especially in areas where fragile and hot. The material exhibits excellent weldability and formability, making it easy to manufacture for a variety of applications. Balancing strength and cost, stainless steel 409 is ideal for automotive exhaust systems, heat exchangers and furnace components. In addition, it resists thermal fatigue well and is very durable under extreme conditions.
These Stainless Steel 409 Sheets and Plates find extensive use in industries that demand heat and corrosion resistance without breaking the bank. They’re commonly found in **automotive exhaust systems, catalytic converters, mufflers, and heat exchangers**. Their robust nature and oxidation resistance make them ideal for **furnace components, ducts, and industrial chimneys**. Moreover, these sheets and plates are utilized in **construction, power plants, and food processing equipment**, where strength and moderate corrosion protection are crucial. Stainless Steel 409 is appreciated for its blend of performance, affordability, and durability in challenging industrial applications.
