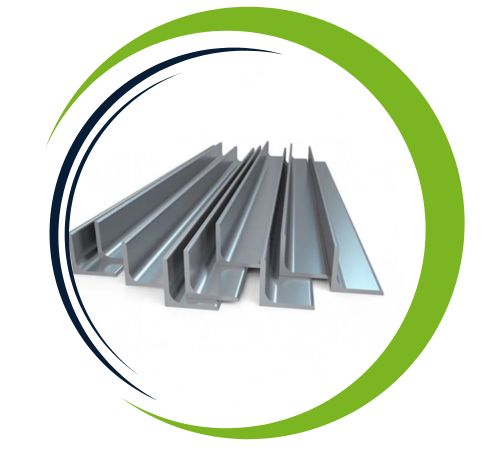

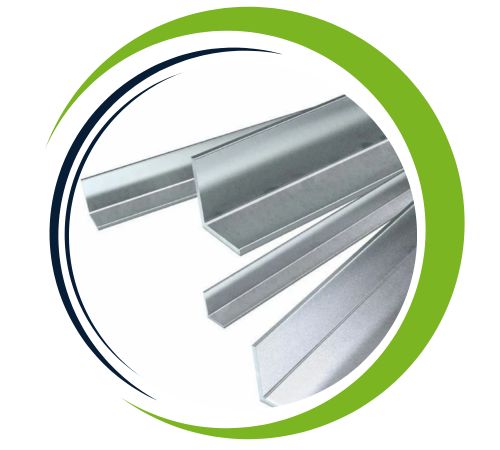

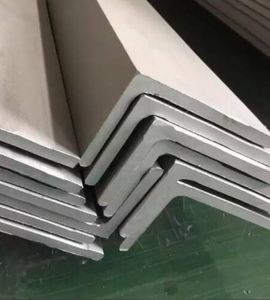

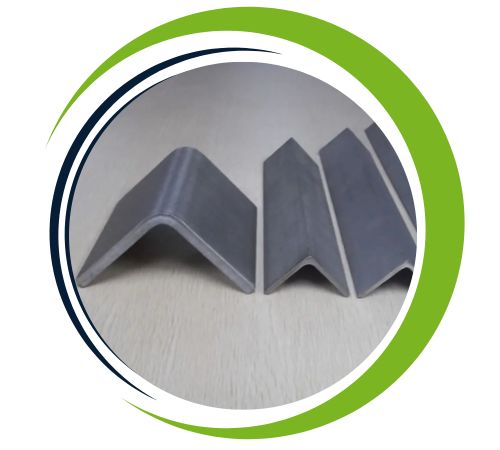

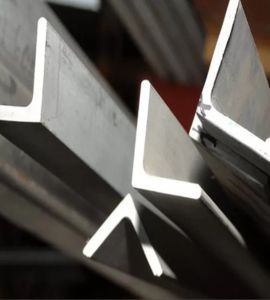

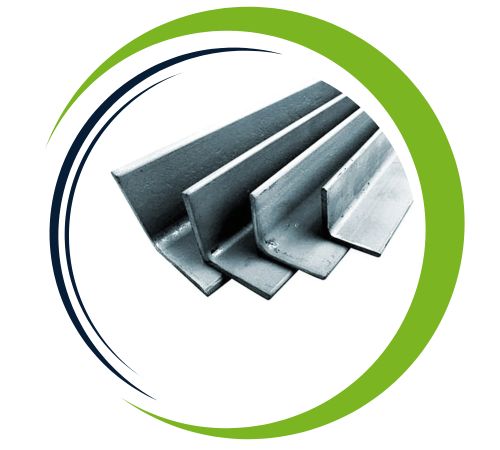

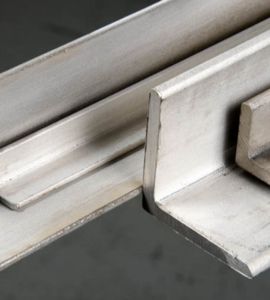

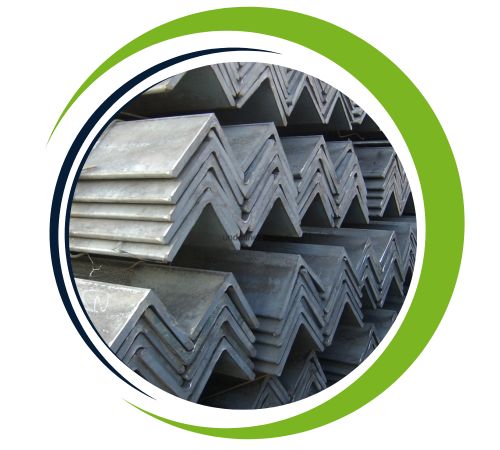

Layla Sheets and Plates, located in Cairo, Egypt, is a reputable manufacturer and provider of quality Stainless Steel Angles. Steel Angles are made with precision to provide strength, durability, and resistance to corrosion. The company guarantees each product complies with international quality standards that make them appropriate for different uses in the industrial and structural realm. Layla Sheets and Plates’ Stainless Steel Angles are well known for their smooth finish, dimensional accuracy, and ability to withstand demanding environments, which makes them ideal for construction, engineering, and fabrication applications.
Stainless Steel Angles are made of primarily iron and 16–18% chromium and 8–10% nickel along with trace amounts of carbon, manganese, and silicon. The combination of these components provides a very high degree of rust resistance, excellent tensile strength, and good weldability. The design material has a tensile strength of approximately 515 MPa and yield at 205 MPa. Additionally, it offers stability in high temperatures and remains rust, oxidation, and scaling resistant to ensure extended performance, indoors and outdoors.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 201 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
| SS 201 | 0.15 max | 5.5 – 7.5 | 100 max | 0.06 max | 0.03 max | 16.00-18.00 | 0.3 – 0.5 | – |
| Temper | Tensile Strength | Yield Strength | Elongation | Rockwell | ||
|---|---|---|---|---|---|---|
| KSi | MPa | KSi | MPa | in 2 inches % | ||
| 1/2 Hard | 150 | -1034 | 110 | -758 | 10 | C-32 |
| 1/4 Hard | 125 | -862 | 75 | -517 | 20 | C-25 |
| 3/4 Hard | 175 | -1207 | 135 | -931 | 7 | C-37 |
| Annealed | 95 | -655 | 45 | -310 | 40 | B-90 max. |
| Full Hard | 185 | -1276 | 140 | -965 | 5 | C-41 |
| STANDARD | UNS | WERKSTOFF NR. |

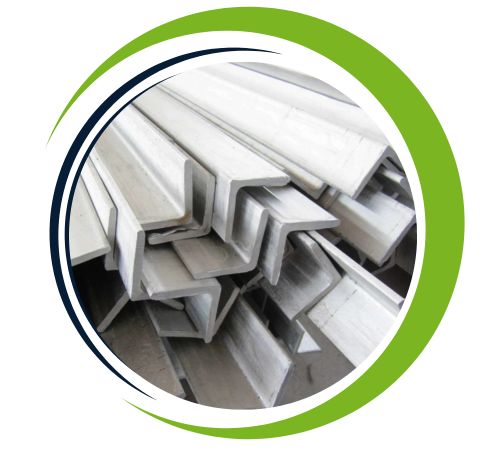

| SS 201 | S20100 | 1.4372 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel angle have many advantages, making them popular in construction and manufacturing. They are very strong, corrosion resistant, and remain strong even in extreme temperatures. Stainless steel corners also make good aesthetic appeal due to their elegant design. Minimal maintenance is required, to ensure longevity. In addition, their versatility, ease of manufacture, and strength-to-weight ratio make them ideal for construction applications. Their resistance to harsh chemical and environmental conditions ensures reliability and efficiency in the automotive, marine and construction industries.
| Width (mm) | Thickness (mm) | Width (Inches) | Thickness (Inches) |
|---|---|---|---|
| 20 x 20 | 3 to 5 | 3/4″ | 1/8 to 1/4 |
| 25 x 25 | 3 to 5 | 1″ | 1/8 to 1/4 |
| 30 x 30 | 3 to 5 | 1.1/8 | 1/8 to 1/4 |
| 32 x 32 | 3 to 6 | 1.1/4 | 1/8 to 1/4 |
| 35 x 35 | 3 to 6 | 1.3/8 | 1/8 to 1/4 |
| 38 x 38 | 3 to 6 | 1.1/2 | 1/8 to 1/4 |
| 40 x 40 | 3 to 6 | 1.5/8 | 1/8 to 1/4 |
| 45 x 45 | 3 to 6 | 1.3/4 | 1/8 to 1/4 |
| 50 x 50 | 3 to 6 | 2″ | 1/8 to 1/4 |
| 60 x 60 | 5 to 6 | 2.3/8 | 3/16 to 1/4 |
| 65 x 65 | 5 to 6 | 2.1/2 | 3/16 to 1/4 |
| 70 x 70 | 5 to 6 | 2.3/4 | 3/16 to 1/4 |
| 75 x 75 | 5 to 6 | 3″ | 3/16 to 1/4 |
tainless Steel Angles are utilized in a range of applications in metals working that veer toward light structural applications as well as, structural support and framework and reinforcement purposes in construction, bridges and building applications– the structural characteristics of these steel pieces permits high load increment per design without rust damage. In industrial applications, they are used in...
