Layla Sheets and Plates, a top-notch manufacturer and supplier located in Cairo, Egypt, specializes in high-quality Hastelloy C22 Sheets and Plates that are built to endure extreme chemical and thermal conditions. These sheets and plates are celebrated for their remarkable corrosion resistance, making them perfect for tough industrial applications. Layla Sheets and Plates is committed to maintaining superior manufacturing standards and precision finishing, ensuring that their materials provide long-lasting performance and reliability. Hastelloy C22 Sheets and Plates are the go-to choice in industries where safeguarding equipment against both oxidizing and reducing agents is crucial for durability and safety.
The composition of Hastelloy C22 Sheets and Plates primarily includes nickel, chromium, molybdenum, and tungsten, which together offer exceptional resistance to both oxidizing and reducing environments. They boast impressive mechanical properties, featuring a tensile strength of around 690 MPa and a yield strength of about 310 MPa, along with high ductility and toughness, even at elevated temperatures. Their outstanding corrosion resistance and formability make them ideal for applications in chemical processing and marine settings.

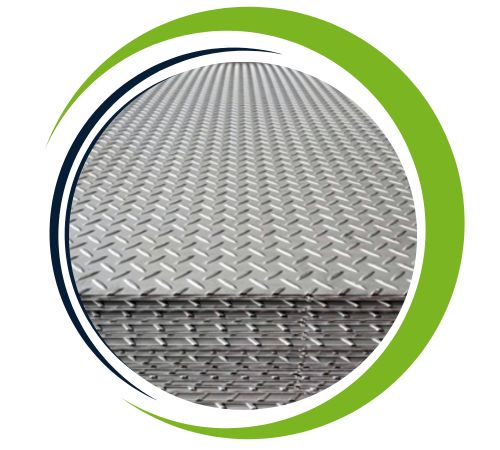

| Type | Plate, Sheet, Strip, Coils, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
|---|---|
| Grade | ASME SB575, ASTM B575 UNS N06022, AMS, MSRR, BS |
| ASTM B575 Alloy C22 Plate Length | 0-12mm or as required |
| Specification of Plate | ASTM B575 UNS N06022, ASME SB575, MSRR, BS, AMS 4544 sheet |
| UNS N06022 Plate Width | 0-2500mm or as required |
| Plate Thickness | 0.3 to 1200 mm or as required |

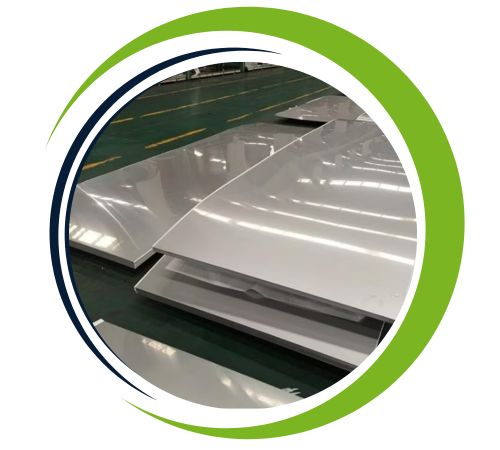

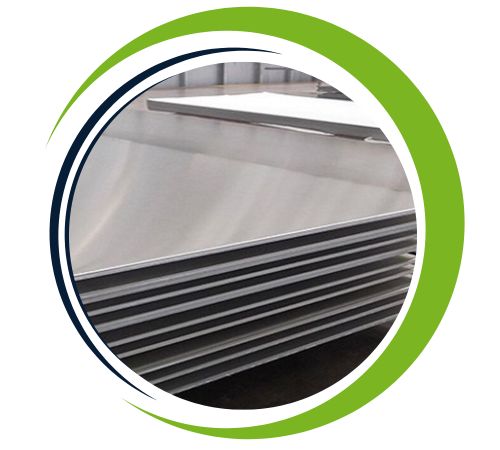

| Alloy C22Plate Process | Hot/ Cold Rolled |
| Plate surface | No.1, No. 2D, No. 2B, BA, No.3, No.4, No.6, No.7, 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM B575 Alloy C22 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | – | NiCr21Mo14W | – |
|
Stocked Sizes |
|
|---|---|
|
Size (in inches) |
Size (in mm) |
|
.125″ |
3.18mm |
|
.134″ |
3.40mm |
|
.156″ |
3.96mm |
|
.187″ |
4.75mm |
|
.250″ |
6.35mm |
|
.312″ |
7.92mm |
|
.375″ |
9.53mm |
|
.500″ |
12.7mm |
|
.600″ |
15.9mm |
|
.750″ |
19.1mm |
|
.875″ |
22.2mm |
|
1″ |
25.4mm |
|
1.125″ |
28.6mm |
|
1.250″ |
31.8mm |
|
1.500″ |
38.1mm |
|
1.750″ |
44.5mm |
|
2″ |
50.8mm |
|
2.500″ |
63.5mm |
|
3″ |
76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy C22 sheets and plates offer outstanding advantages, making them ideal for use in harsh environments. They provide excellent resistance to both oxidizing and reducing agents, ensuring protection against pitting, crevice corrosion, and stress corrosion cracking. Their versatility allows them to perform reliably in aggressive chemical processes, including acidic and chlorinated environments. With high mechanical strength and exceptional durability, they are suitable for high-temperature applications. Additionally, Hastelloy C22 sheets and plates exhibit excellent weldability, ease of fabrication, and long service life, reducing maintenance and enhancing efficiency in demanding industrial operations.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Hastelloy C22 Sheets and Plates find extensive use in chemical processing plants, pollution control equipment, the pulp and paper industry, and marine environments. Their ability to resist pitting, crevice corrosion, and stress-corrosion cracking makes them suitable for reactors, heat exchangers, evaporators, and flue gas scrubbers. Additionally, they are utilized in pharmaceutical and food processing equipment, where contamination-free materials are essential. Thanks to their durability and resistance to aggressive media, Hastelloy C22 Sheets and Plates are trusted in highly corrosive industrial environments.
