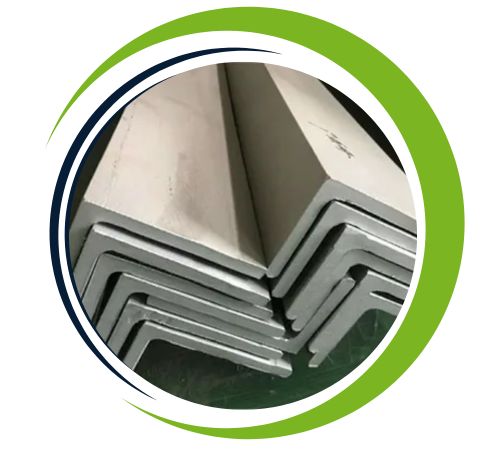

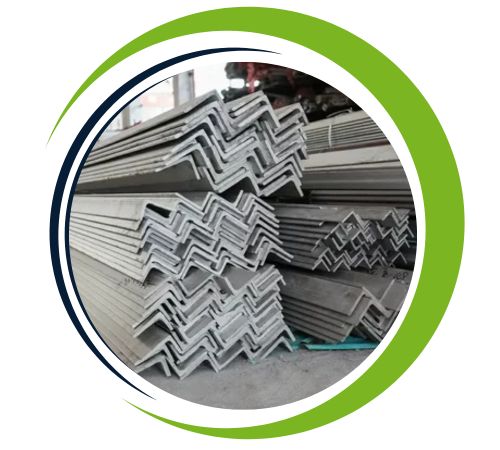

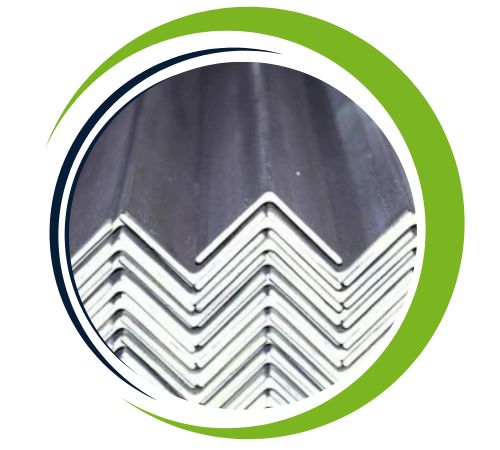

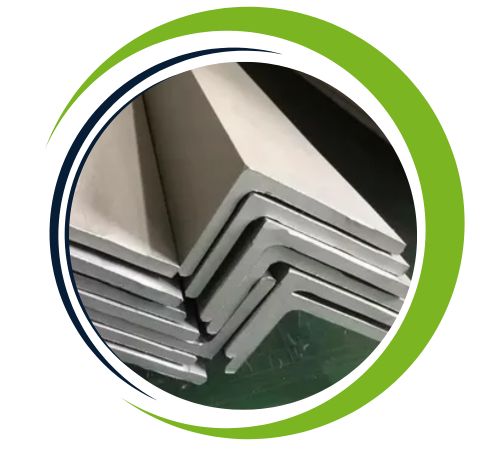

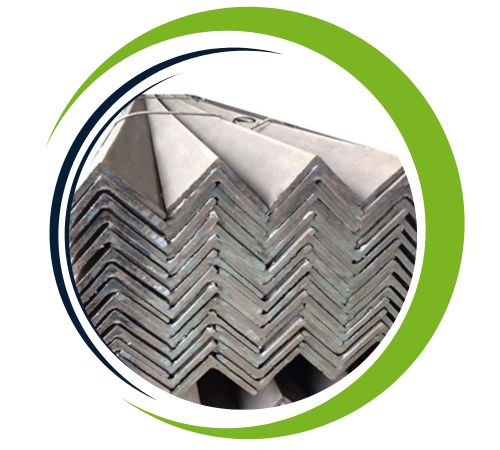

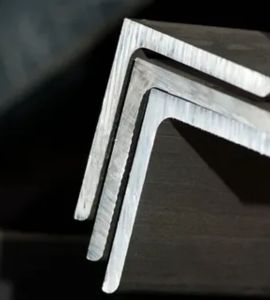

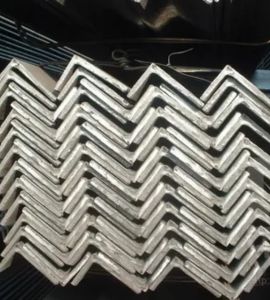

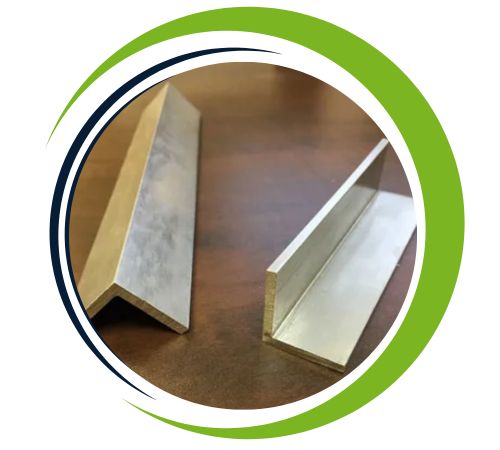

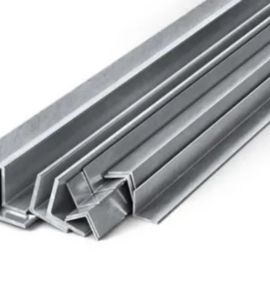

Layla Sheets and Plates is a top-notch manufacturer and supplier located in Cairo, Egypt, specializing in high-quality **Incoloy 800/800H/800HT Angles** designed for high-temperature, chemical, and industrial applications. With state-of-the-art production facilities and rigorous quality control measures, the company guarantees precise dimensions, a smooth surface finish, and outstanding mechanical properties in every angle they produce. Layla Sheets and Plates caters to various industries, including chemical processing, petrochemical, power generation, aerospace, and furnace manufacturing. Their Incoloy 800/800H/800HT Angles are highly regarded for their remarkable strength, resistance to corrosion, and thermal stability, making them perfect for structural and high-performance applications in tough environments.
Incoloy 800, 800H, and 800HT are nickel-iron-chromium alloys known for their high-temperature strength and resistance to oxidation and carburization. The composition includes approximately 30-35% nickel, 19-23% chromium, and smaller amounts of iron, manganese, silicon, and carbon. Incoloy 800 is primarily used for furnace applications, while 800H has improved creep and rupture strength due to controlled carbon content. Incoloy 800HT, with enhanced high-temperature properties, is ideal for power plants and chemical processing. These alloys exhibit excellent mechanical properties, including good tensile strength, creep resistance, and long-term durability under extreme conditions.
| Standard | ASTM B408, ASME SB408 |
|---|---|
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32 |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800HT | 0.06 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Layla Sheets and Plates based in Alexandria, Egypt, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Incoloy 800/800H/800HT Angles are nickel-iron-chromium alloys that contain about 30–35% nickel, 19–23% chromium, along with controlled amounts of iron, titanium, and aluminum, depending on the specific grade. They boast tensile strength ranging from 450–750 MPa (varying by grade and temperature) and retain excellent mechanical properties even when exposed to high temperatures for extended periods. These angles are resistant to oxidation, scaling, and carburization, while also providing good weldability, formability, and toughness, making them suitable for fabrication into structural and high-temperature components.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | Incoloy Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 316 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Incoloy 800 / 800H / 800HT Angle to meet specific project needs. Our team at Layla Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Incoloy 800/800H/800HT Angles find extensive use in industries that demand strength, corrosion resistance, and high-temperature performance. In chemical and petrochemical plants, they are utilized for furnace parts, piping, and structural supports that face aggressive environments. In the power generation sector, they are employed in boiler components, turbine parts, and heat exchangers. The aerospace and furnace manufacturing industries rely on them for high-temperature structural components and critical load-bearing applications. Their unique combination of durability, thermal stability, and corrosion resistance makes Incoloy 800/800H/800HT Angles a go-to choice for challenging industrial applications.
