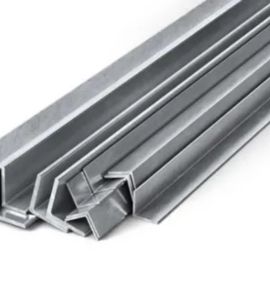

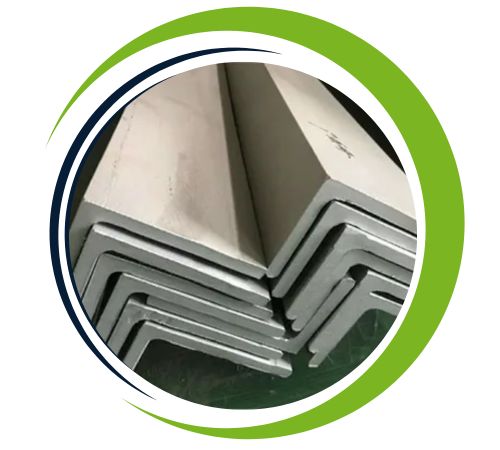

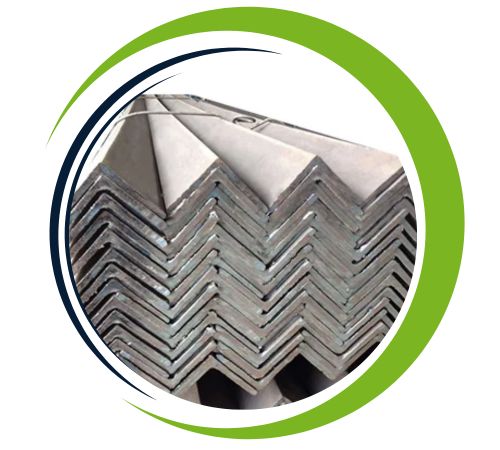

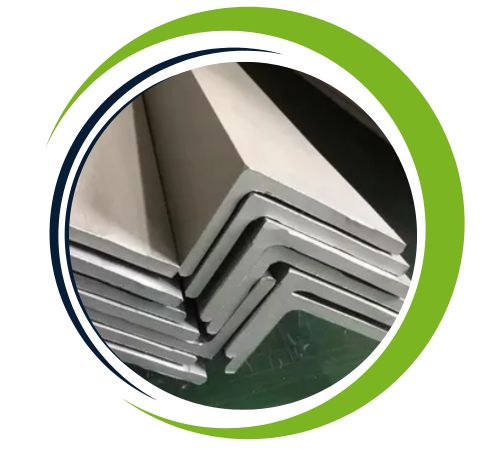

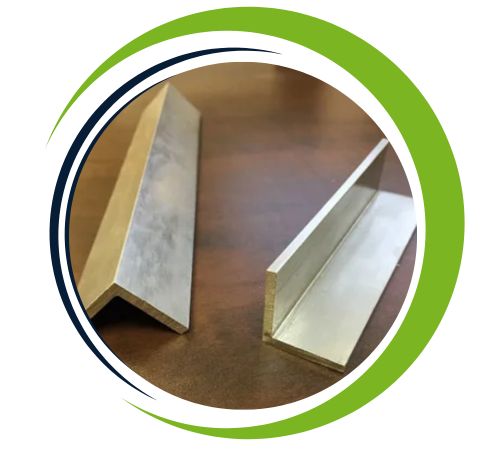

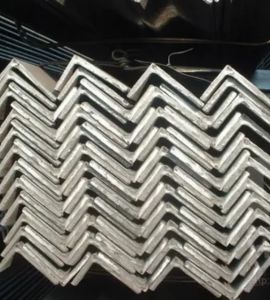

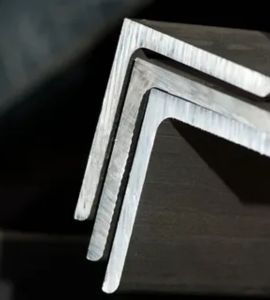

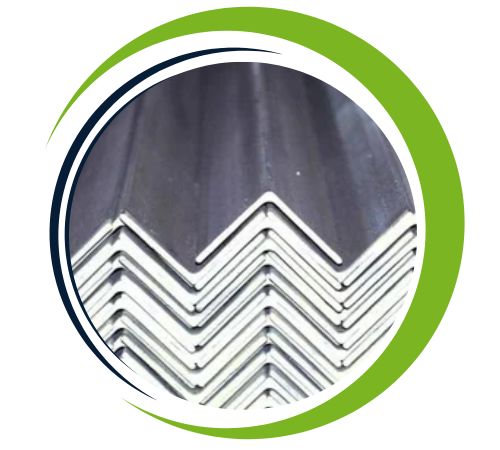

Layla Sheets and Plates, based in Cairo, Egypt, is a well-respected manufacturer and supplier of top-notch Incoloy Angles. The company has built a reputation for providing precision-engineered products that adhere to international standards for strength, performance, and durability. Each Incoloy Angle is crafted from high-quality materials and cutting-edge production techniques, ensuring exceptional corrosion resistance and lasting reliability. Catering to a variety of industries throughout Egypt and the Middle East, Layla Sheets and Plates offers customized sizes and finishes to meet the unique needs of different industrial and structural applications.
Incoloy Angles are made from nickel-iron-chromium alloys, known for their impressive mechanical strength and remarkable resistance to oxidation and corrosion, even in high-temperature and chemically aggressive settings. The alloy’s composition is often enhanced with elements like molybdenum, copper, and titanium, which provide excellent protection against pitting, crevice corrosion, and stress-corrosion cracking. These angles maintain high tensile and yield strength, along with outstanding toughness and fabricability, even when subjected to elevated temperatures and harsh chemicals.
Specifications : ASTM B425 / ASME SB425
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy Angle | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy Angle | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Layla Sheets and Plates based in Alexandria, Egypt, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Incoloy angle offers several key advantages, making it ideal for high-performance applications. Its excellent resistance to oxidation, corrosion, and high-temperature environments ensures long-lasting durability in harsh conditions. The alloy’s superior mechanical properties, including high tensile strength and creep resistance, make it suitable for demanding industries such as aerospace, power generation, and chemical processing. Incoloy angle also provides good weldability and formability, enabling ease of fabrication. Additionally, its resistance to sulfuric and hydrochloric acids, along with its ability to withstand extreme thermal conditions, enhances its versatility and reliability in complex engineering projects.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | Incoloy Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 316 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Incoloy Angle to meet specific project needs. Our team at Layla Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Incoloy Angles find extensive use in industries such as chemical processing, marine engineering, power generation, and pollution control. They are perfect for fabricating heat exchangers, furnace components, pressure vessels, and support structures that face corrosive and high-temperature conditions. Additionally, these angles are invaluable in offshore and desalination projects due to their impressive resistance to seawater and acidic environments. Incoloy Angles from Layla Sheets and Plates guarantee reliable performance, structural integrity, and a long service life in the most challenging industrial applications.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
