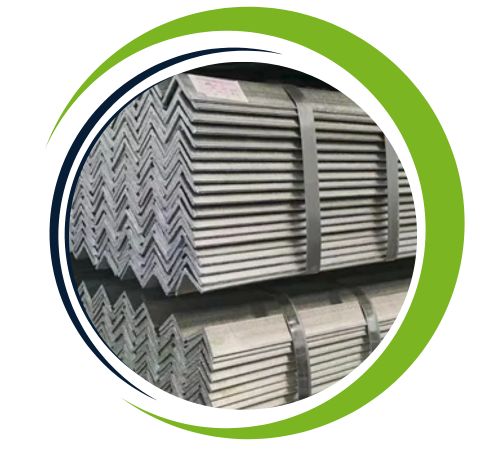

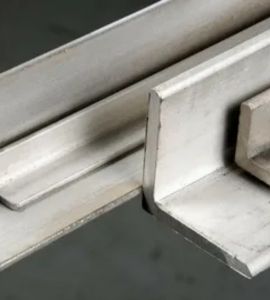

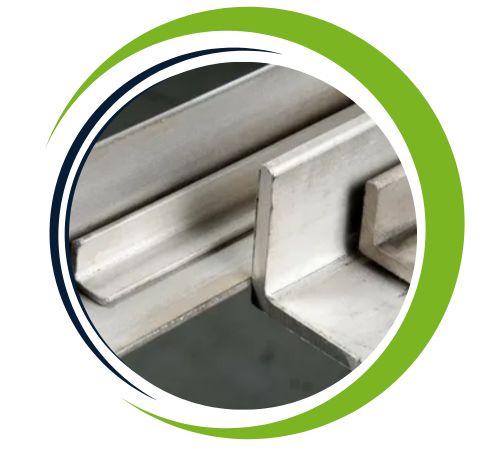

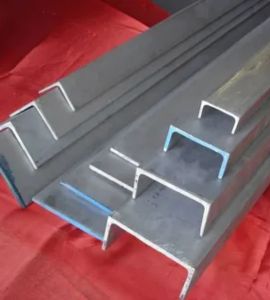

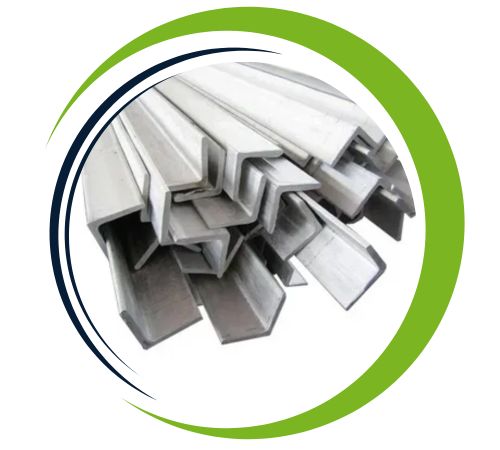

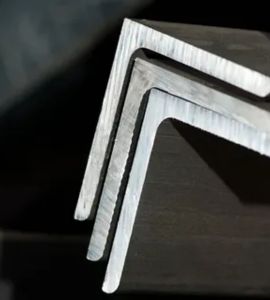

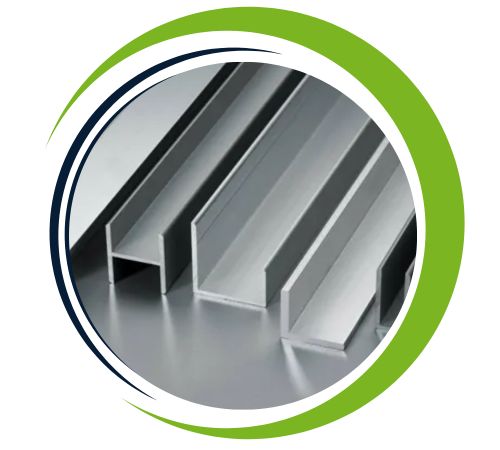

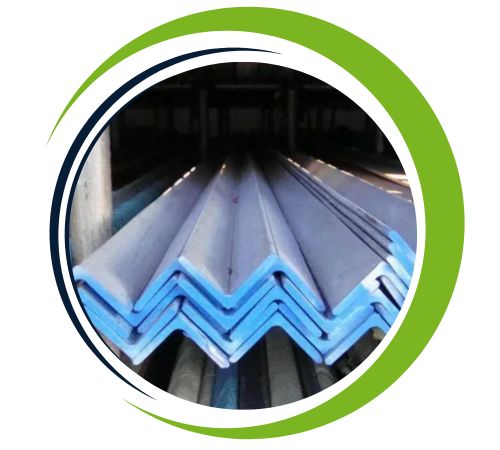

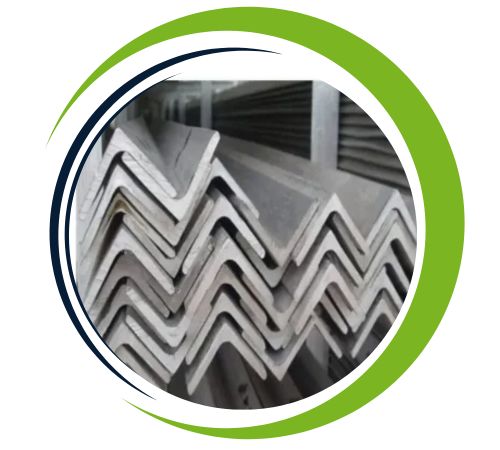

Layla Sheets and Plates is a top-notch manufacturer and supplier located in Cairo, Egypt, with a focus on high-quality **Inconel 600 Angles**. Known for their precision, durability, and commitment to international standards, the company provides these angles in a variety of sizes, thicknesses, and finishes to cater to the needs of demanding industrial, chemical, and high-temperature applications. By employing advanced manufacturing techniques and rigorous quality control, Layla Sheets and Plates guarantees that their Inconel 600 Angles offer exceptional oxidation and corrosion resistance, outstanding mechanical strength, and dependable performance even in extreme thermal and chemical environments. Their products are designed to deliver long-lasting, versatile, and high-performance solutions for structural, engineering, and specialized projects.
Inconel 600 Angles are primarily made up of nickel (about 72%), chromium (14–17%), and iron (6–10%), along with trace amounts of carbon, manganese, and silicon. This distinctive composition grants them remarkable resistance to oxidation, corrosion, and thermal degradation while ensuring excellent tensile strength, ductility, and dimensional stability. The angles are easy to fabricate, bend, and shape without losing their integrity, making them perfect for applications that demand durability, precision, and long-term reliability in high-temperature or chemically aggressive settings.
Specifications : ASTM B166 / ASME SB166
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Element | Ni | C | Mn | Cu | S | Si | Cr | Fe |
| Inconel 600 | 72.0 min | 0.15 max | 1.0 max | 0.5 max | 0.015 max | 0.5 max | 14.0 – 17.0 | 6.0 – 10.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Layla Sheets and Plates based in Alexandria, Egypt, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 600 Angle offers several advantages, including excellent resistance to oxidation and corrosion, particularly in high-temperature environments. Its ability to withstand extreme temperatures up to 2,000°F (1,093°C) makes it ideal for applications in industries such as aerospace, chemical processing, and power generation. The alloy exhibits high strength and durability, maintaining its mechanical properties even under stress. Additionally, Inconel 600 is highly resistant to sulfur compounds and chloride stress corrosion cracking, ensuring long-term performance and reliability. These qualities make it a preferred material for demanding and harsh environments.
Yes, we offer custom sizes for Inconel 600 Angle to meet specific project needs. Our team at Layla Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) | Inconel Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Inconel 600 Angles find extensive use in industries where high corrosion resistance, heat resistance, and mechanical strength are crucial. In the **chemical and petrochemical sectors**, they are utilized for structural supports, flanges, and process equipment. In **aerospace and power generation**, they play a role as turbine components, furnace parts, and exhaust systems. Moreover, they are employed in **marine, industrial, and specialized engineering applications**, offering durable, reliable, and high-performance solutions for extreme and challenging conditions.
