Liam Steel, located in Manila, Philippines, stands out as a top manufacturer and supplier of high-quality Monel K500 Circles. Renowned for their precision, strength, and resistance to corrosion, Liam Steel offers nickel-based alloy products that meet the demanding standards of the marine, chemical, and aerospace sectors. The company skillfully blends cutting-edge manufacturing technology with rigorous quality control to guarantee a dependable supply, outstanding performance, and competitive pricing across the Philippines and surrounding areas.
Monel K500 Circles are primarily made up of nickel and copper, with small amounts of aluminum and titanium added in. These elements boost the alloy’s strength and hardness through a process called age-hardening, all while maintaining the impressive corrosion resistance found in Monel 400. Typically, Monel K500 showcases a tensile strength ranging from 620 to 860 MPa and a yield strength between 450 and 690 MPa. It also boasts excellent resistance to stress-corrosion cracking, oxidation, and high-temperature conditions.
| Standard | ASTM B127, ASME SB127 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |

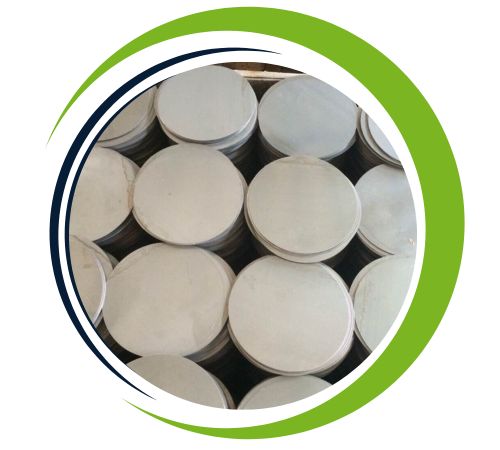

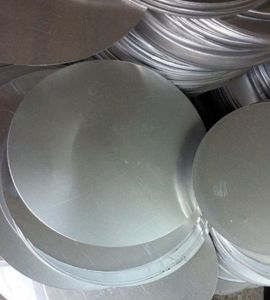

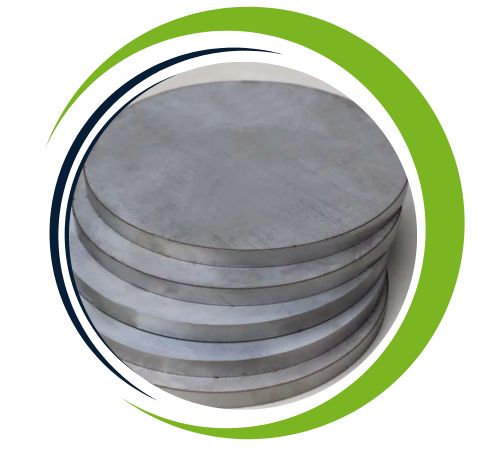

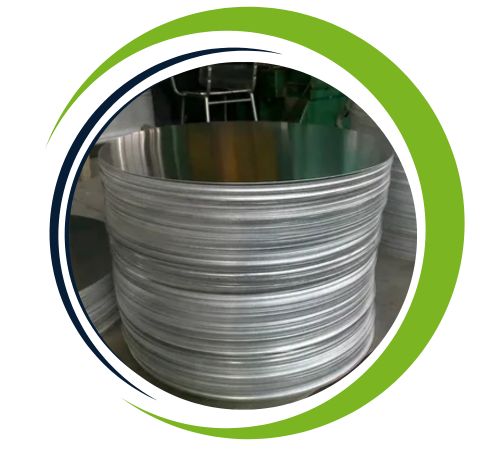

| Circles Form | Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Hot Rolled Circle. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
DIN 2.4375 Circle offers numerous advantages, including superior strength and hardness due to the addition of aluminum and titanium. Its excellent corrosion resistance in harsh marine, chemical, and high-temperature environments makes it ideal for demanding applications. The alloy also resists stress corrosion cracking, pitting, and crevice corrosion, ensuring long-lasting performance. Monel K500 maintains stability under extreme conditions and exhibits excellent fatigue and impact resistance. Its high durability, combined with good weldability and machinability, makes it a reliable choice for use in aerospace, marine, and chemical processing industries.
Yes, we offer custom sizes for Monel K500 Circle to meet specific project needs. Our team at Layla Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS |
| Monel K500 | 2.4375 | N05500 |
These Monel K500 Circles are extensively used in marine and offshore applications, such as pump shafts, propeller shafts, and valve components, thanks to their exceptional strength and seawater resistance. They also find applications in the chemical processing, oil and gas, and aerospace industries, where durability and reliability in extreme conditions are essential. With their remarkable mechanical and corrosion-resistant properties, Monel K500 Circles are perfect for demanding industrial and structural uses.
