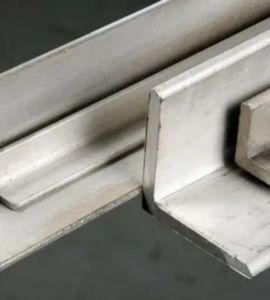

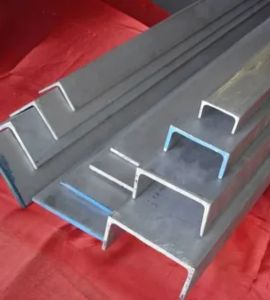

Layla Sheets and Plates is a reputable manufacturer and supplier located in Cairo, Egypt, specializing in high-quality **Nickel Alloy 200 Angles** for a variety of sectors, including chemical, marine, and industrial applications. Thanks to their state-of-the-art production facilities and rigorous quality control measures, the company guarantees that each angle boasts precise dimensions, a smooth surface finish, and outstanding mechanical properties. Layla Sheets and Plates caters to industries such as chemical processing, petrochemical, power generation, and marine engineering. Their Nickel Alloy 200 Angles are highly regarded for their exceptional corrosion resistance, ductility, and thermal stability, making them perfect for structural and high-performance uses in harsh and high-temperature settings.
These Nickel Alloy 200 Angles are primarily made up of nickel (at least 99%), along with trace amounts of iron, copper, and carbon. They demonstrate tensile strength between 275–550 MPa and possess excellent yield strength, ensuring high ductility, toughness, and thermal conductivity. These angles are resistant to corrosion in both reducing and mildly oxidizing environments, including acids, caustic solutions, and seawater. Their remarkable weldability, formability, and long-lasting durability make them ideal for critical applications in industrial, marine, and chemical fields.
Specifications : ASTM B160 / ASME SB160
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nickel Alloy 200 Angle offers excellent corrosion resistance, particularly against alkaline solutions, fresh water, and organic acids. Its high strength and durability make it ideal for harsh industrial environments, including chemical processing, marine, and aerospace applications. The alloy maintains its mechanical properties at elevated temperatures and resists oxidation, ensuring long-lasting performance. It also provides excellent weldability and formability, making fabricating various shapes easy. Its non-magnetic properties enhance its versatility in electronics and other precision applications, offering reliable performance in demanding conditions.
Nickel Alloy 200 Angles find extensive use in industries that demand corrosion resistance, strength, and reliability. In chemical and petrochemical facilities, they are utilized for structural supports, piping systems, and reactor vessels that come into contact with aggressive substances. The marine and offshore sectors rely on them for seawater equipment, frameworks, and piping. Power generation industries incorporate them into boiler components and high-temperature processing equipment. With their unique blend of corrosion resistance, ductility, and thermal performance, Nickel Alloy 200 Angles are the go-to choice for challenging industrial applications.
