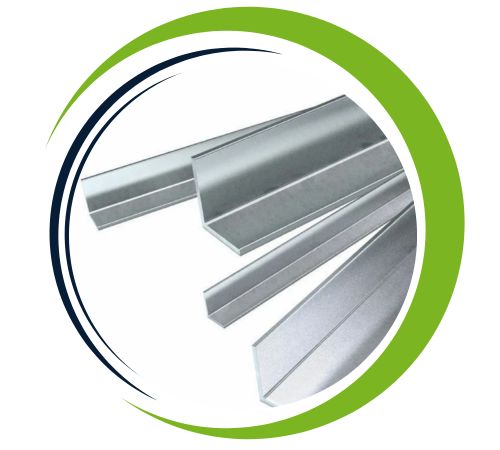

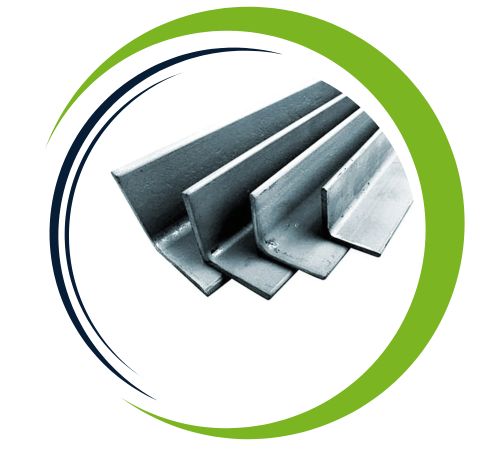

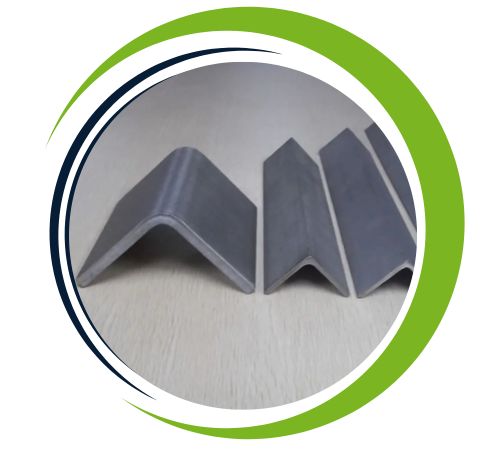

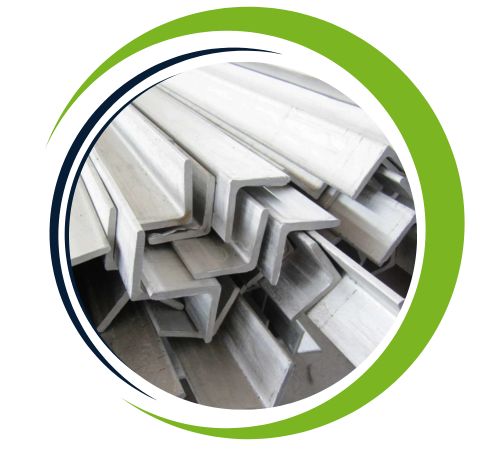

Layla Sheets and Plates, a well-respected manufacturer and supplier based in Cairo, Egypt, proudly offers high-quality Stainless Steel 316 Angle, renowned for its outstanding corrosion resistance, strength, and versatility. This alloy is specifically designed to perform exceptionally well in harsh, chloride-rich environments, ensuring long-lasting durability and structural integrity. At Layla Sheets and Plates, the focus is on precision manufacturing, using premium materials, and adhering to global standards. The Stainless Steel 316 Angle finds its place in various industries, including marine, chemical processing, and construction, delivering reliability and stability even in the most corrosive and high-stress conditions.
The composition of Stainless Steel 316 Angle primarily includes iron, along with 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, plus trace amounts of manganese, silicon, and carbon. The addition of molybdenum significantly enhances its resistance to pitting and crevice corrosion, particularly in chloride environments. This alloy boasts a tensile strength ranging from 515 to 700 MPa and a yield strength of about 205 MPa. It also showcases excellent weldability, formability, and oxidation resistance, maintaining its impressive mechanical properties even at elevated temperatures.
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, etc |
| Size | 3/4″ THRU 8″ |
| Thickness | 1/8″ thru 5/8″ |
| Type | Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled |
| Grades | 304/304L/304H/310S/316/316L/316H/316TI/317/317L/321/321H/904L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Layla Sheets and Plates based in Alexandria, Egypt, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless steel 316 angle provides excellent resistance to corrosion, especially in harsh environments such as marine and chemical conditions, and the molybdenum content gives it excellent strength and durability, allowing it to operate even at elevated temperatures in. This alloy provides excellent weldability and formability, making it suitable for complex structural applications. Additionally, the stainless steel 316 surface is low maintenance, resists pitting, cracking and corrosion, and is very resistant to oxidation. These properties make it ideal for use in industries such as pharmaceuticals, food processing and manufacturing.
| THICKNESS | ||||||
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless Steel 316 Angle is widely utilized across marine, chemical, petrochemical, food processing, and pharmaceutical sectors. It’s perfect for frameworks, supports, architectural structures, and equipment that come into contact with saltwater or corrosive chemicals. Thanks to its high corrosion resistance and hygienic properties, it’s an excellent choice for food-grade and medical applications. Moreover, Stainless Steel 316 Angle is commonly found in refineries, offshore platforms, and construction projects where durability, stability, and resistance to chemical attacks are essential for long-term performance and safety.
