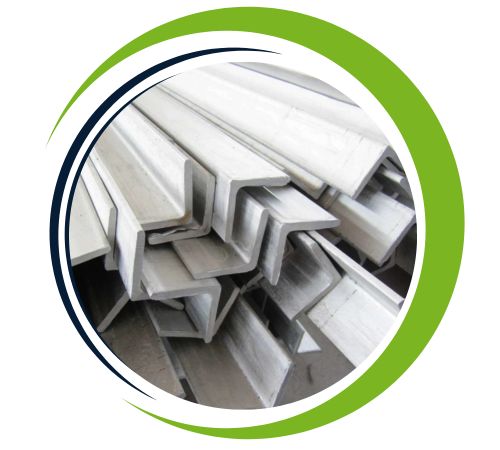

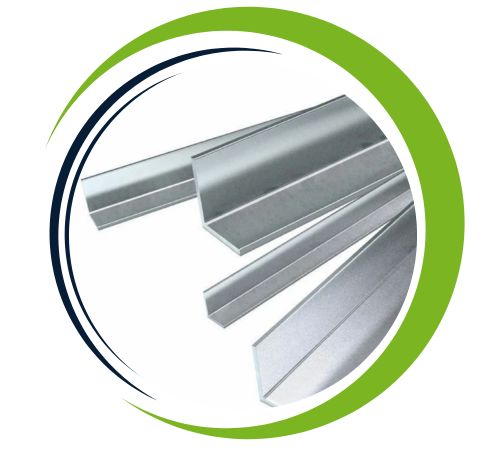

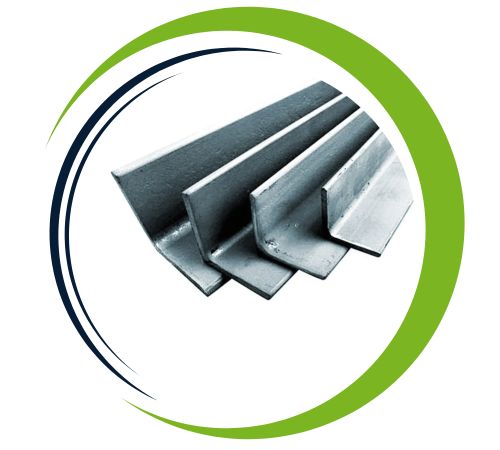

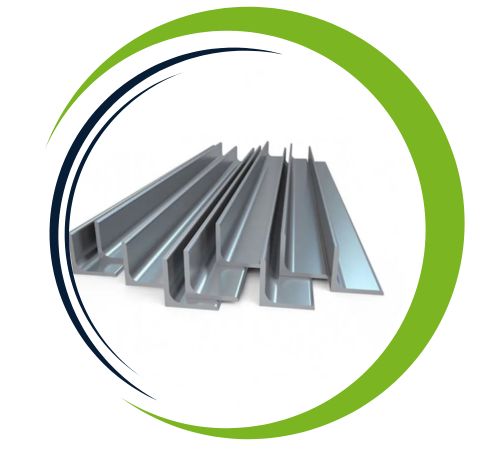

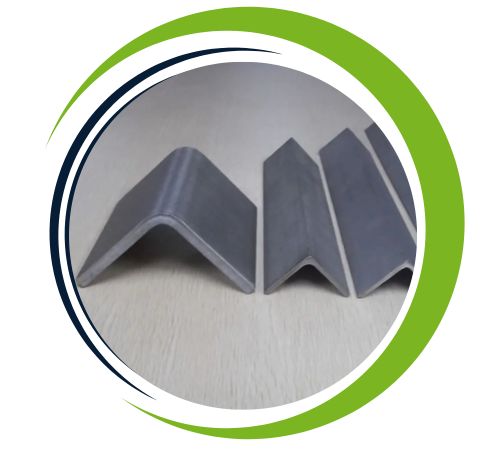

Layla Sheets and Plates, a well-respected manufacturer and supplier based in Cairo, Egypt, is all about providing top-notch Stainless Steel 316Ti Angle that’s built to perform exceptionally in tough, corrosive, and high-temperature settings. This titanium-stabilized alloy is designed to resist intergranular corrosion, ensuring it remains strong and durable even in the most demanding situations. At Layla Sheets and Plates, the focus is on precision manufacturing, quality control, and sticking to international standards. The Stainless Steel 316Ti Angle finds its place in various industries, including chemical processing, marine, construction, and food processing, where it delivers lasting reliability, structural integrity, and the ability to withstand harsh operating conditions.
The composition of Stainless Steel 316Ti Angle includes iron, 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and titanium for stabilization. This blend boosts its resistance to corrosion, especially against chlorides and acids, while keeping its strength intact at high temperatures. It boasts a tensile strength ranging from 515 to 700 MPa and a yield strength of about 205 MPa. The alloy is known for its excellent weldability, toughness, and oxidation resistance up to 870°C, making it a fantastic choice for aggressive and thermal environments.
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, etc |
| Size | 3/4″ THRU 8″ |
| Thickness | 1/8″ thru 5/8″ |
| Type | Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled |
| Grades | 304/304L/304H/310S/316/316L/316H/316TI/317/317L/321/321H/904L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Layla Sheets and Plates based in Alexandria, Egypt, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 316Ti angle provides excellent corrosion resistance thanks to its titanium-tough design especially in high-temperature environments that retains this strength and stability under extreme conditions, and provides it is ideal for industrial marine applications. The alloy resists pitting and crack corrosion, providing durability in high chloride environments. Also, it exhibits excellent weldability and formability, facilitating mass production. Its advanced mechanical properties and thermal resistance make it suitable for pressure molds and chemical processes, resulting in reliable operation and reduced maintenance over time.
| THICKNESS | ||||||
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
You’ll find Stainless Steel 316Ti Angle widely used in sectors like petrochemical, marine, food processing, and pharmaceuticals. It’s perfect for crafting heat exchangers, pressure vessels, marine fittings, and furnace components where corrosion and heat resistance are crucial. Thanks to its titanium-stabilized structure, it prevents carbide precipitation during welding and extended heat exposure. Plus, its combination of mechanical strength, corrosion resistance, and durability makes it a go-to material for structural and engineering applications in harsh, high-temperature environments.
