Layla Sheets & Plates is a leading manufacturer of quality stainless steel products, offering a wide range of sheets, plates and solutions Focusing on accuracy and durability Their Stainless Steel 347 Angle are known for exceptional resistance to corrosion and high temperatures Availability of quality Designed for industrial applications, Layla products meet the highest performance standards of each, providing reliable and durable solutions for customers across industries.

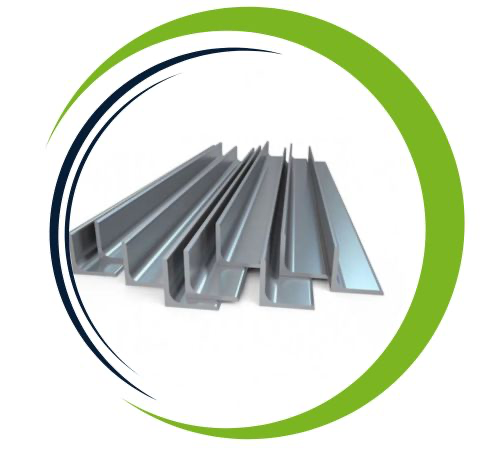

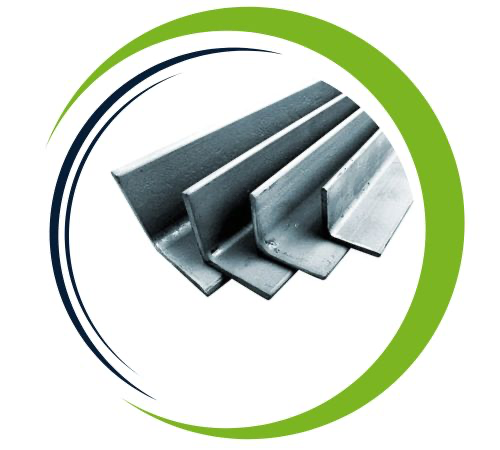

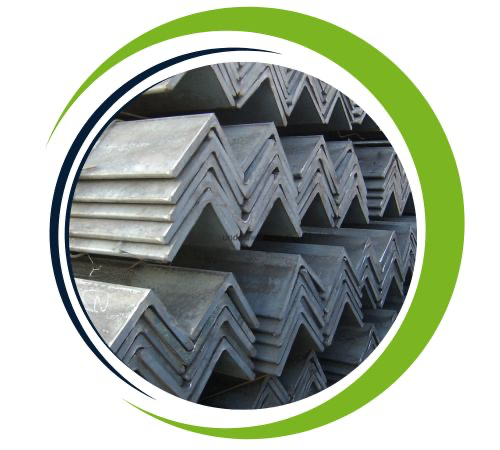

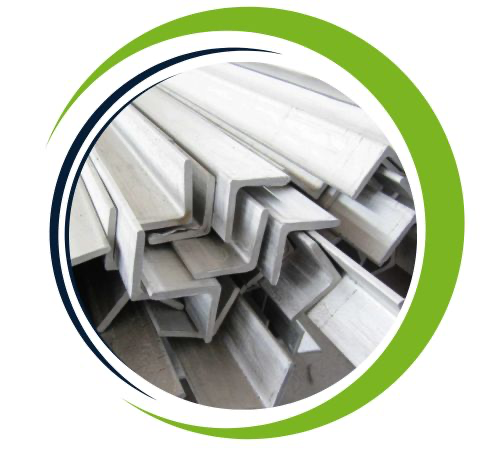

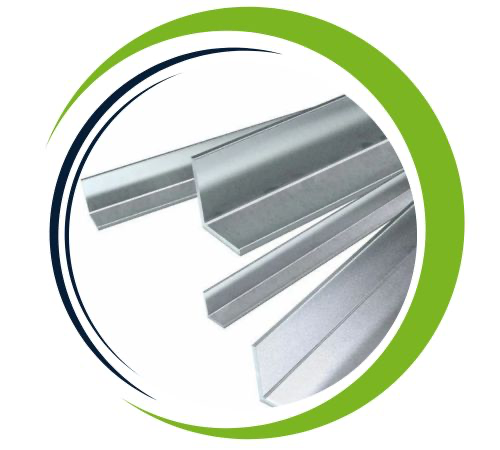

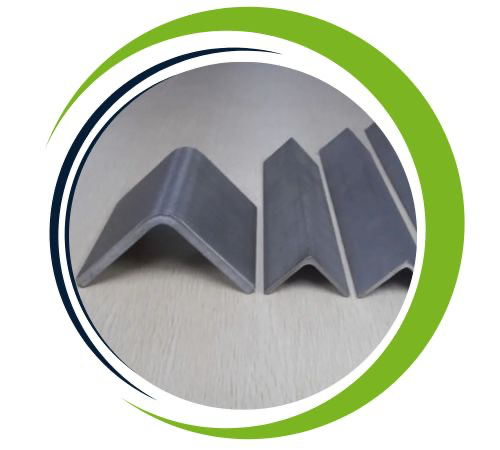

Stainless steel 347 angle is an austenitic steel with chromium (17-19%), nickel (9-13%) and niobium (10x carbon content), with small amounts of manganese, silicon and carbon especially well against inter-granular corrosion Provides corrosion resistance . Its mechanical properties include high tensile strength (515 MPa), yield strength (205 MPa), and elongation (40%). At higher temperatures, the material remains solid, making it suitable for use at higher temperatures. The advantages of the stainless steel 347 surface include corrosion resistance and weldability, making it ideal for use in the chemical, gas and aerospace industries, and heat exchangers.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 347 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | SS 347 |
|---|---|
| C | 0.08 max |
| Mn | 2 max |
| Si | 1 max |
| P | 0.045 max |
| S | 0.030 max |
| Cr | 17 – 20 |
| Cb | 10xC – 1.10 |
| Ni | 9.0 – 13.0 |
| Fe | 62.74 min |
| Grade | SS 347 |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35% |
| STANDARD | SS 347 |
| WERKSTOFF NR. | 1.4550 |
| UNS | S34700 |
| JIS | SUS 347 |
| BS | – |
| GOST | 08Ch18N12B |
| AFNOR | – |
| EN | X6CrNiNb18-10 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Layla Sheets and Plates based in Alexandria, Egypt, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless steel 347 Angle for excellent corrosion resistance, especially in hot environments and harsh chemicals. Stabilization is made of columbium and tantalum, preventing carbide precipitation and ensuring high intergranular corrosion resistance. This makes it ideal for high-stress applications in the aerospace, petrochemical, and power plant industries. It has good weldability, formability and high heat resistance. Stainless steel 347 provides durability and performance under extreme conditions, making it a reliable choice for construction and industrial applications requiring high corrosion and temperature resistance.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
stainless steel 347 angle is widely used at high temperatures. It is ideal for pharmaceuticals, energy production and petrochemical applications due to its stability in chromium carbide precipitation environments. It also works well in the food processing, aerospace and pharmaceutical industries. This alloy’s resistance to oxidation and corrosion makes it suitable for heat exchangers, furnace parts, and welded components exposed to corrosive areas Stainless steel 347 angle for durability and strength in critical applications.
